temporal-ai-agent/architecture.md

Elements

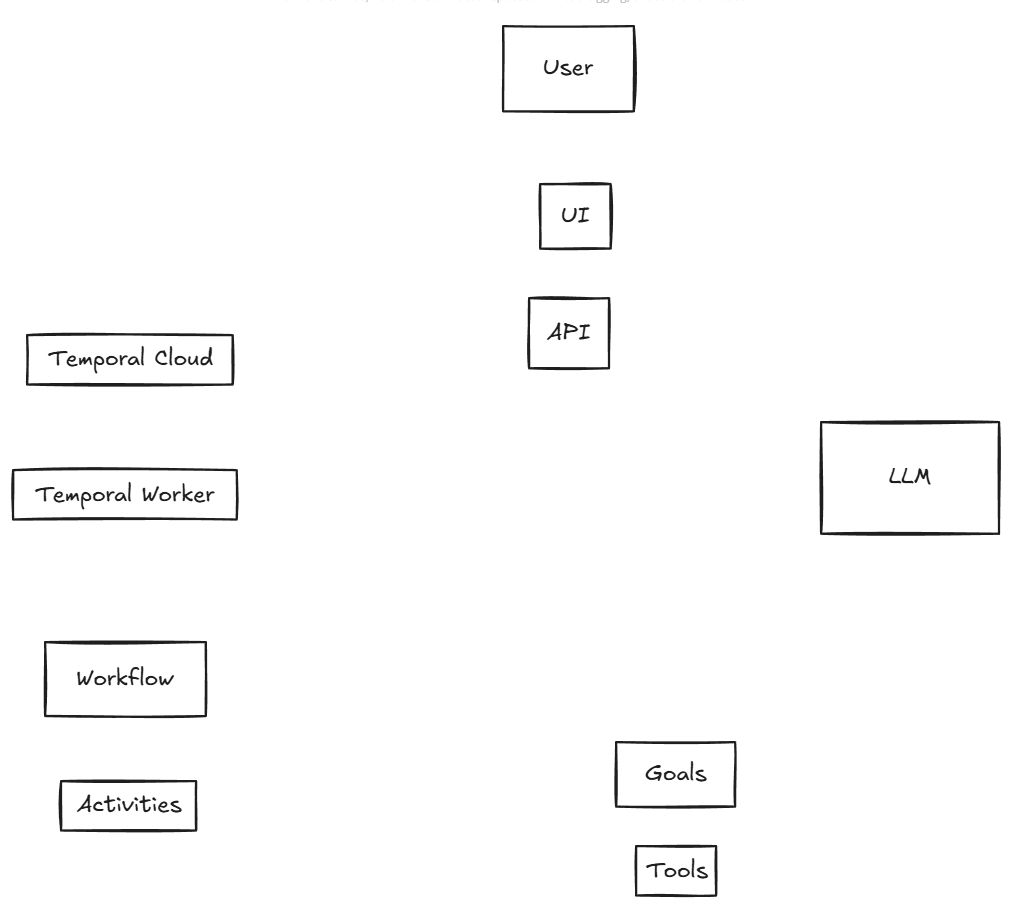

These are the main elements of this system. See architecture decisions for information beind these choices. In this document we will explain each element and their interactions, and then connect them all at the end.

Workflow

This is a Temporal Workflow - a durable straightforward description of the process to be executed. See agent_goal_workflow.py. Temporal is used to make the process scalable, durable, reliable, secure, and visible.

Workflow Responsibilities:

• Orchestrates interactive loops:
  • LLM Loop: Prompts LLM, durably executes LLM, stores responses
  • Interactive Loop: Elicits responses from input (in our case a human) and validates input responses
  • Tool Execution Loop: Durably executes Tools
• Keeps record of all interactions (Signals, Queries, Updates)
• Handles failures gracefully
• Input, LLM and Tool interaction history stored for debugging and analysis

Activities

These are Temporal Activities. Defined as simple functions, they are auto-retried async/event driven behind the scenes. Activities durably execute Tools and the LLM. See a sample activity.

Tools

Tools define the capabilities of the system. They are simple Python functions (could be in any language as Temporal supports multiple languages). They are executed by Temporal Activities. They are “just code” - can connect to any API or system. They also are where the deterministic business logic is: you can validate and retry actions using code you write. Failures are handled gracefully by Temporal.

Activities + Tools turn the probabalistic input from the user and LLM into deterministic action.

Prompts

Prompts are where the instructions to the LLM are. Prompts are made up of initial instructions, goal instructions, and tool instructions. See agent prompts and goal & tool prompts.

This is where you can add probabalistic business logic to

• to control process flow
• describe what to do
• give examples of interactions
• give instruction and validation for the LLM

LLM

Probabalistic execution: it will probably do what you tell it to do. Turns the guidance from the prompts (see agent prompts and goal prompts) into You have a choice of providers - see setup. The LLM:

• Drives toward the initial Goal and any subsequent Goals selected by user
• Decides what to do based on input, such as:
  • Validates user input for Tools
  • Decides when to execute Tools
  • Decides on next step for Goal
• Formats input and interprets output for Tools
• is executed by Temporal Activities
  • API failures and logical failures are handled transparently

Interaction

Interaction is managed with Temporal Signals and Queries. These are durably stored in Workflow History. History can be used for analysis and debugging. It's all “just code” so it's easy to add new Signals and Queries. Input can be very dynamic, just needs to be serializable.

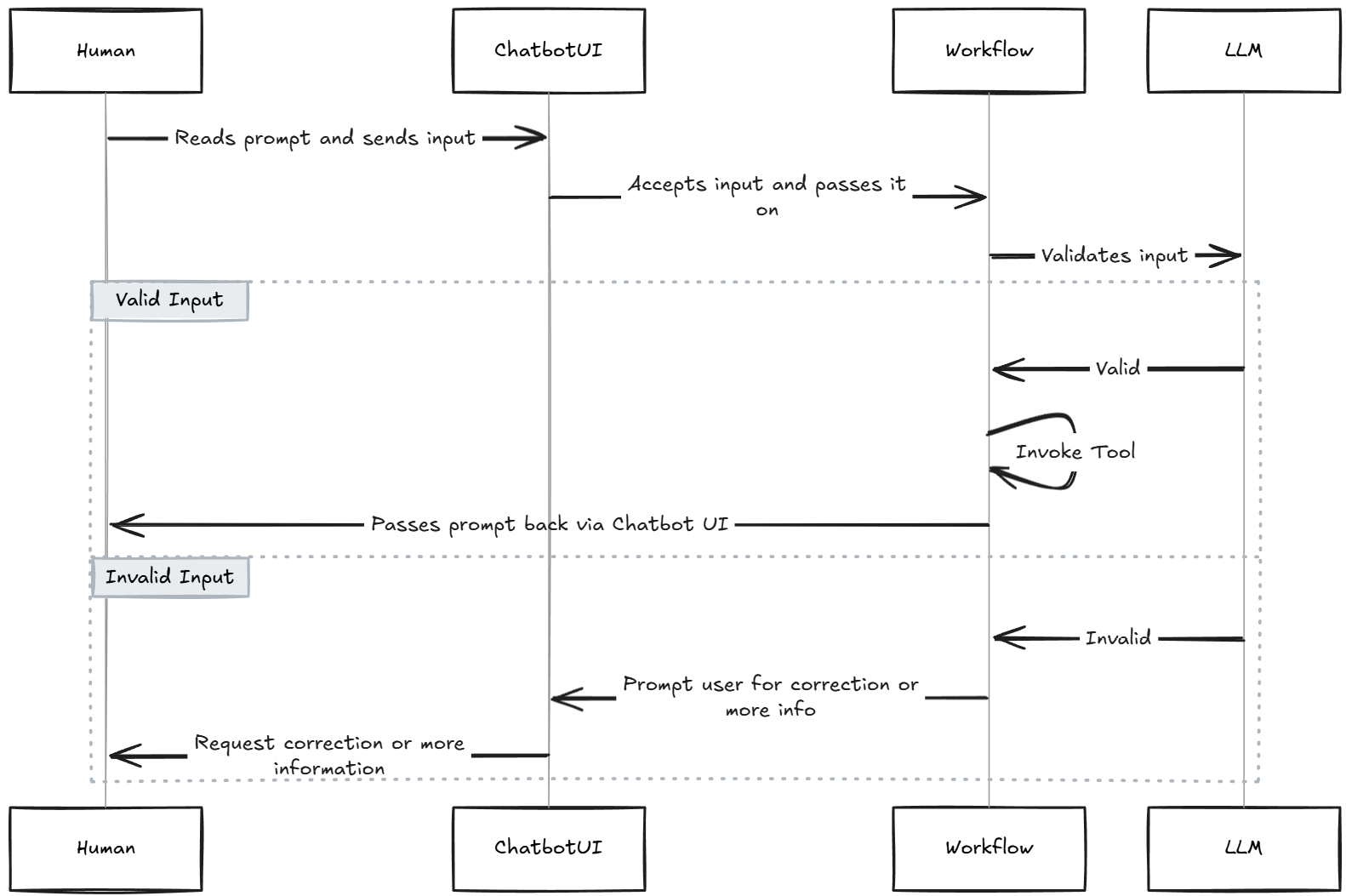

The Workflow executes the Interaction Loop: gathering input, validating input, and providing a response:

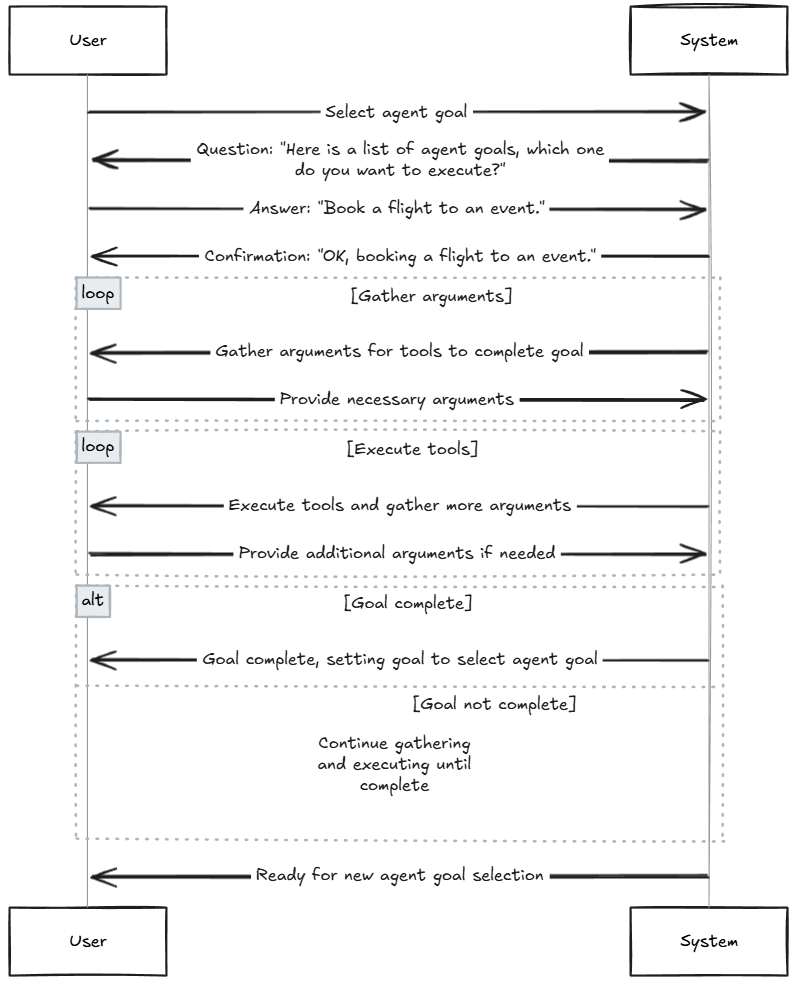

Here's a more detailed example for gathering inputs for Tools:

Architecture Model

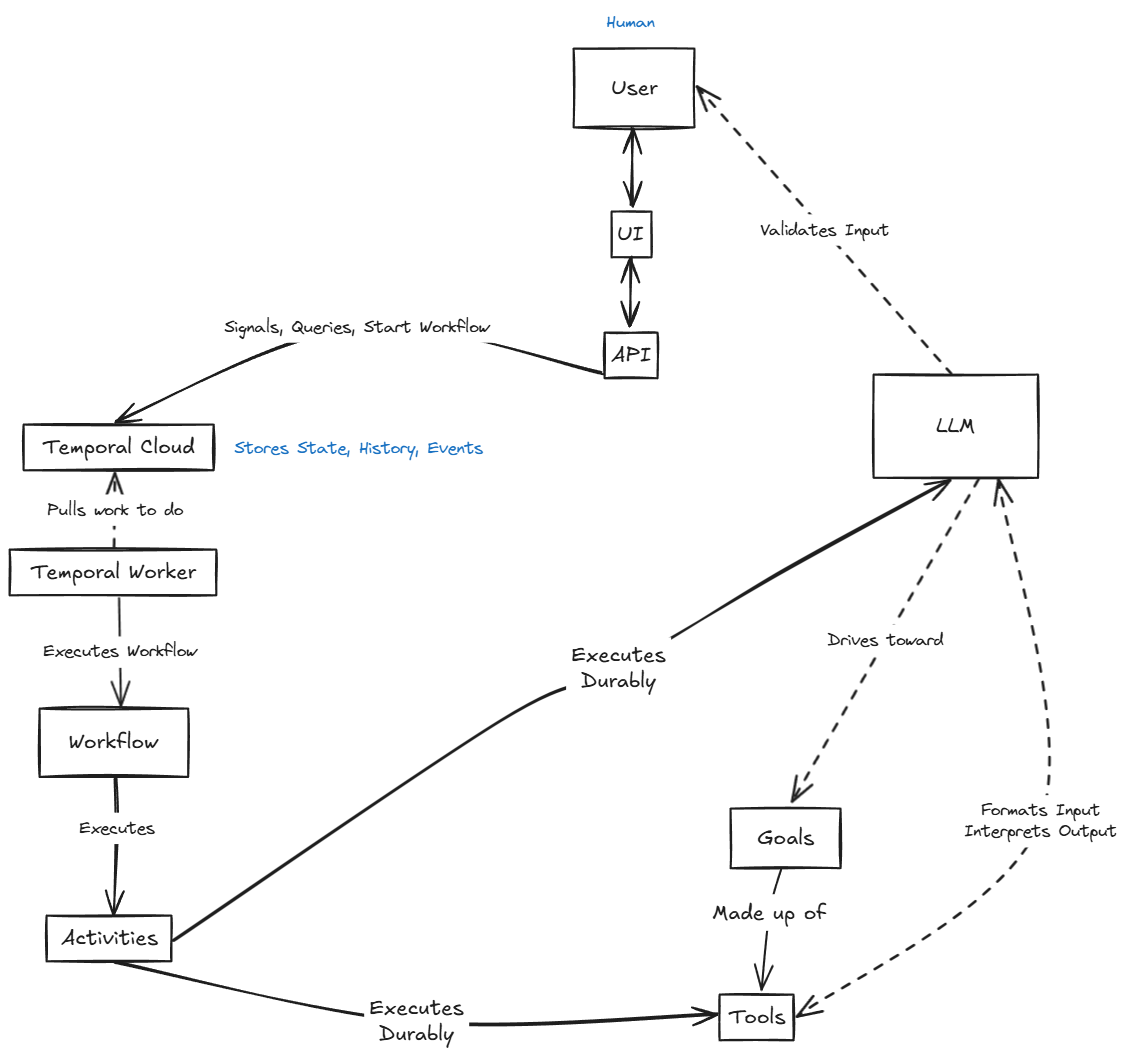

Now that we have the pieces and what they do, here is a more complete diagram of how the pieces work together:

Adding features

Want to add more Goals and Tools? See adding goals and tools. Have fun!
